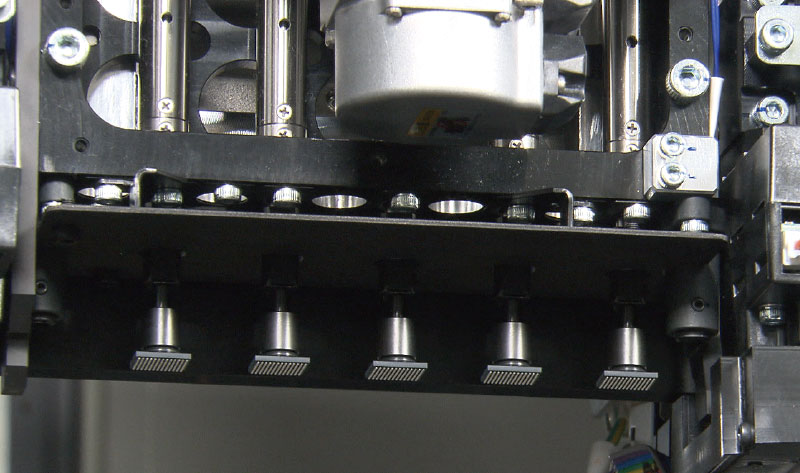

The world’s fastest mounting speed in its class!

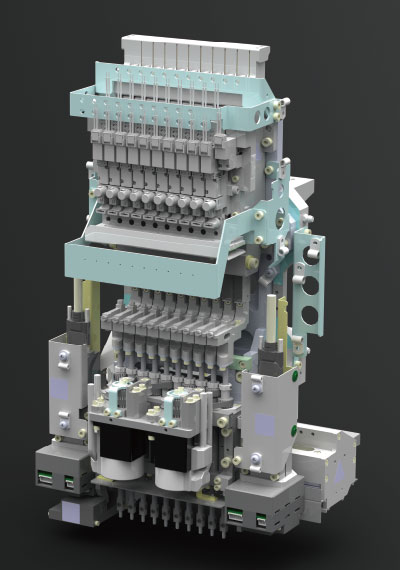

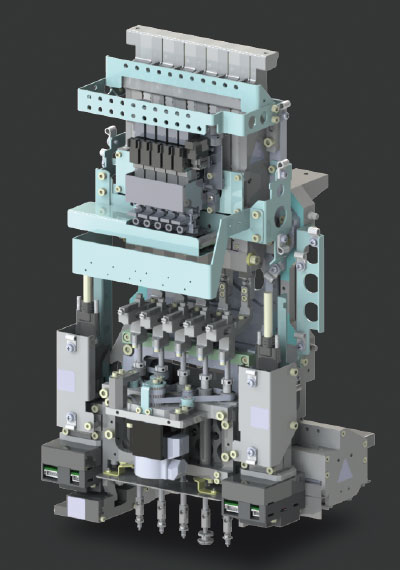

By adopting a new-generation servo system from upper-ranked models and utilizing a lightweight and compact universal type head we have speeded up mounting more than 25% compared to conventional models to achieve the world’s fastest mounting speed in its class of 46,000 CPH (chips per hour).

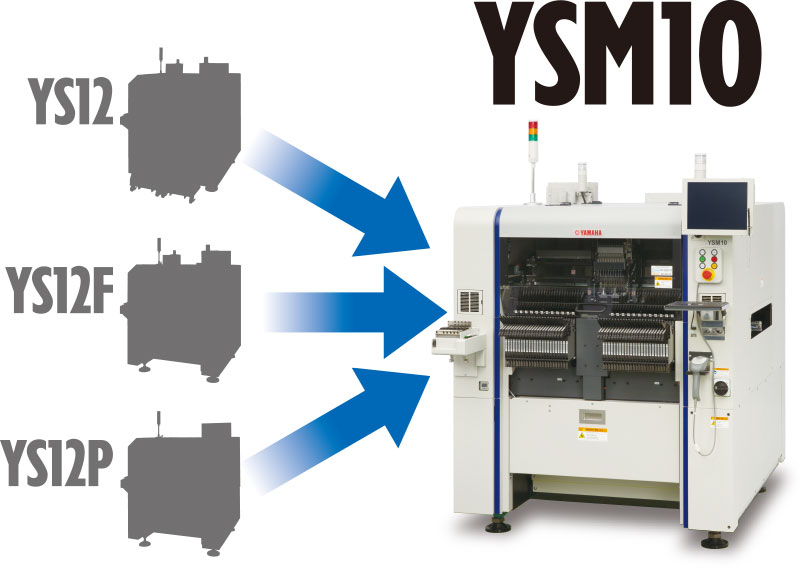

Single Platform

Here, 3 models or namely the YS12 with flexibility and mobility, YS12P with some simpler specifications, and YS12F with superb component handling compatibility are integrated into one type of platform. This is a super-entry model combining high parts compatibility and versatility along with the usual small size body, high speed, and space saving specs.

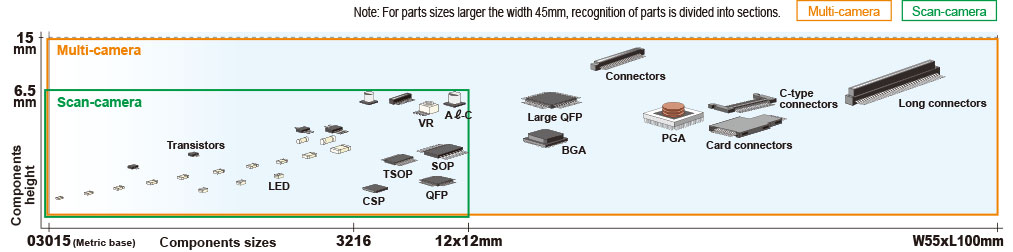

Compatible components

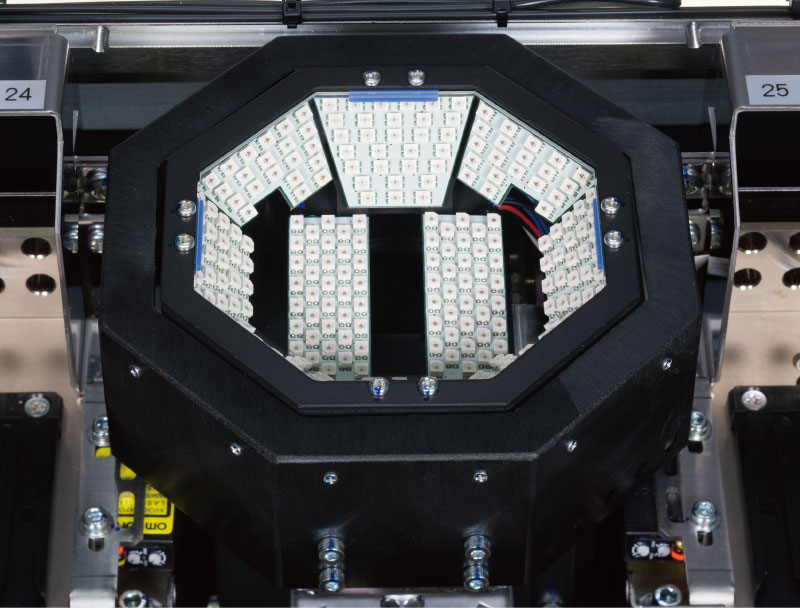

Multi-Camera

High-speed and high-accuracy parts recognition to sizes exceeding 12mm or heights exceeding 6.5mm.

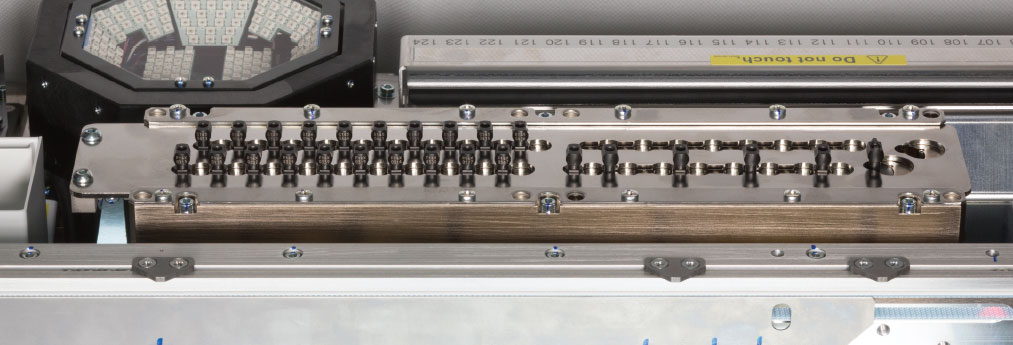

Nozzle Station

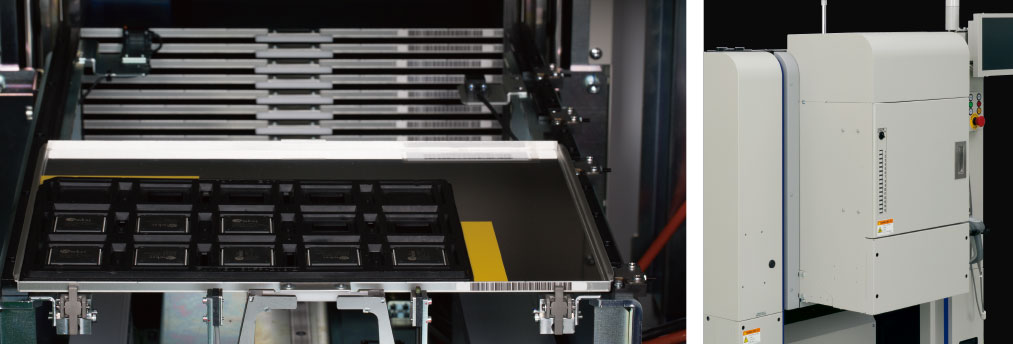

Automatic replacement tray supply unit "sATS15"

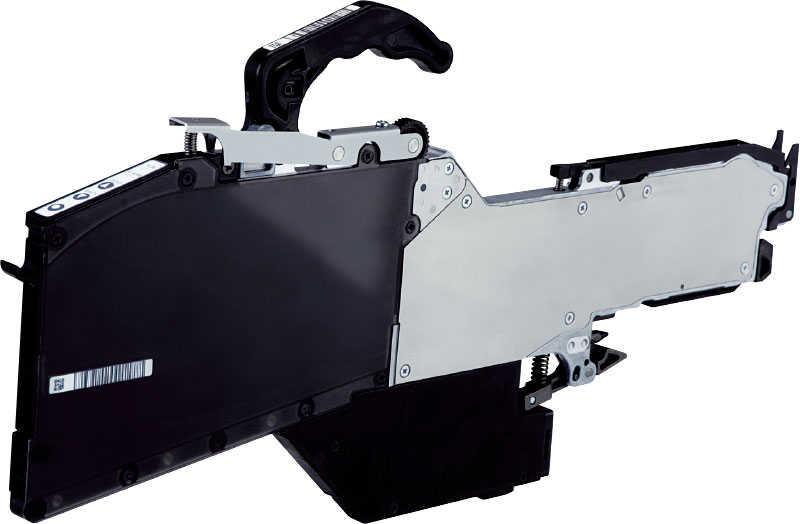

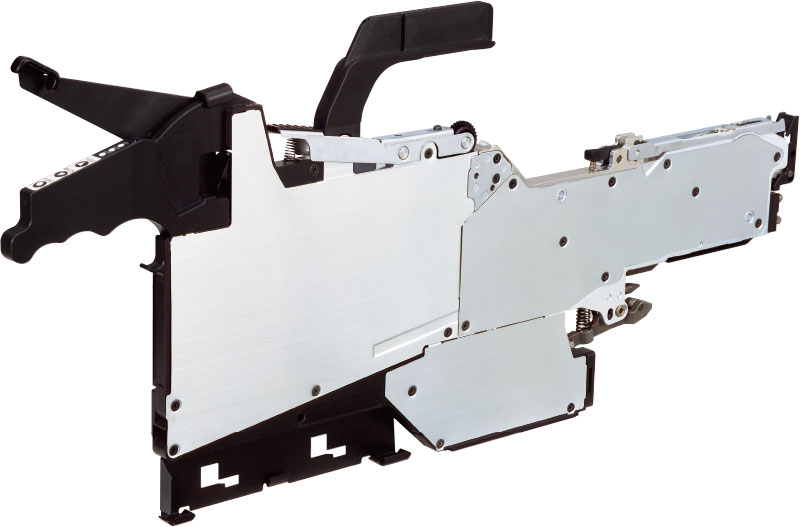

Tape feeder

Electric-drive intelligent feeders "SS feeder" and "ZS feeder" fully compatible with all YS series models.

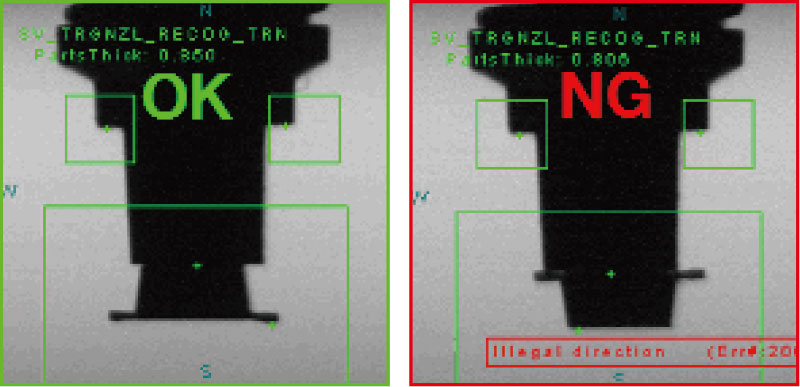

Side view function

Eliminates mounting errors by detecting parts, missing parts, and part pickup status with no time loss.

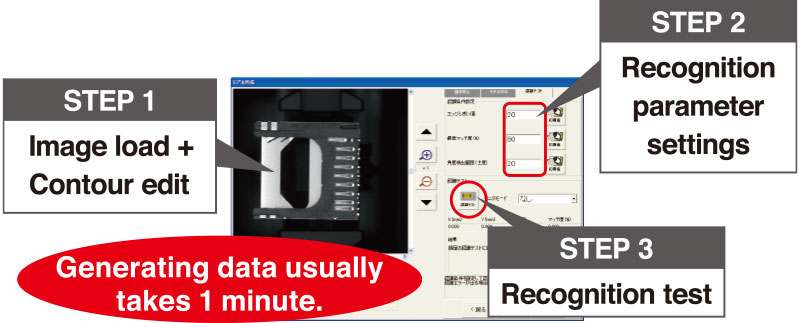

Automatic recognition optimizer function

Prevents pickup and recognition errors by applying a function (smart recognition) that does easy data generation for parts having complex shapes and also a recognition data auto-generator & tracking function. (es-Vision)

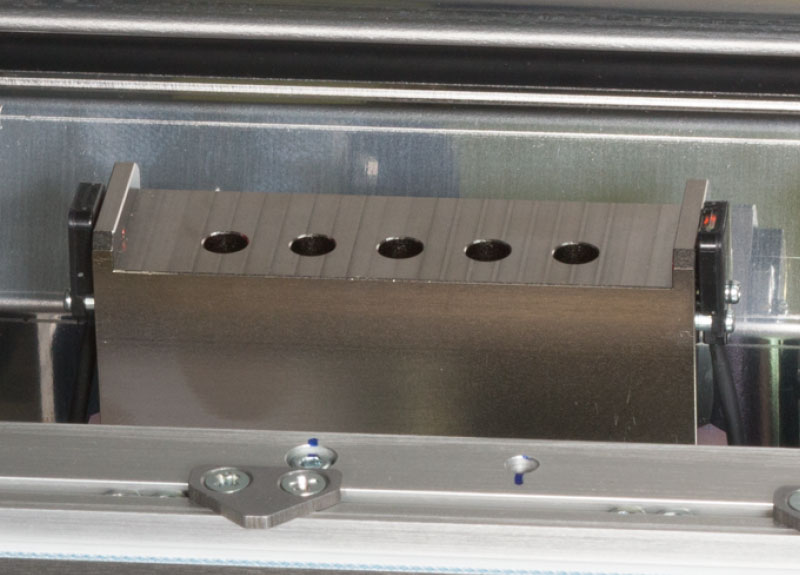

Blow Station

Nozzle shafts are automatically cleaned to keep the nozzle in good condition for long periods of time. A nozzle health check function applies automatic recovery processes such as nozzle blow and a protect function to prevent use of abnormal nozzles.

Highly stable & reliable pickup system

Maintains superb part pickup performance by way of a pickup height auto--teach function and pickup position auto compensator function.

Conforms to CE marking standards

Worldwide operability with equipment design that gives safety number one priority.
