Belt Type - BD Stepping Motor | Single Axis Robot

Belt Type - BD
Rugged
Resolver
Up to
2000mm
Stroke
Shutter
Included
Energy
Saver!


Belt type (BD)
Universality, energy-saving and low impact achieved with multi-position positioning unique to motorized devices
The compact size supports a maximum 2000 strokes.

Features

TRANSERVO series

01 New control method combines the best features of servo and stepping motors!

Stepping motors provide great features such as low cost , yet they have a drastic drop in torque at high speeds and heavy current consumption when stopped. The TRANSERVO by YAMAHA eliminates all these problems by adopting an innovative vector control method. In effect, the TRANSERVO delivers the same functions of a servo motor while using a lower cost stepping motor.

Energy saver!

Control is basically the same as a servomotor so power consumption is kept to a minimum, which saves energy and helps cut down on CO 2 emissions.

Perfect stop!

Also perfect stop can be achieved as the same as with ordinary stepping motors so choose this setting if needed.

transervo

02 Environmentally rugged resolver provides closed loop control

The resolver used for detecting the motor position is the same reliable resolver as used in our high-level robots. Resolver offer stable position detection even in harsh environments containing dust or oil, etc. Addtionally the resolution of the resolver is 20480 pulses per revolution.

rugged resolver

The resolver is a magnetic position detector. Its structure is simple with no electronic component and no optical elements. One great feature compared to ordinary optical encoders is that there are very few points where a failure might occur. Vast quantities of resolvers are used in fields like aviation and the automobile industry where reliability is essential and also because they are highly tough in harsh environments with a low failure rate.


Belt Type


01Belt type applicable to long stroke

  • Applicable to up to 2000 mm-stroke.
  • High speed movement at a speed of up to 1500 mm/sec. can be made.
  • Maximum payload 14 kg
  • Main body can be installed without disassembling the robot.

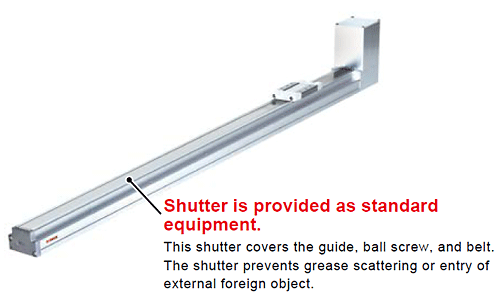

  • Shutter is provided as standard equipment. This prevents grease scattering or entry of foreign object.
Belt Type

Specifications

Type BD04 BD05 BD07
Catalog (Dimensions)
Motor 28□Step motor 42□Step motor 56□Step motor
Resolution 4096 20480 20480
Repeated positioning accuracy (mm) *1 +/-0.1 +/-0.1 +/-0.1
Drive method belt belt belt
Equivalent lead (mm) 48 48 48
Maximum speed (mm/sec)*2 1100 1400 1500
Maximum payload (kg) 1 5 14
Stroke (mm) 300,500,600,700,
800,900,1000
300,500,600,700,800,900,
1000,1200,1500,1800,2000
300,500,600,700,800,900,
1000,1200,1500,1800,2000
Static loading moment
(N・m)
MY 10 27 46
MP 10 27 46
MR 20 52 101
Allowable overhang
Overall length(mm) Stroke+195.5 Stroke+241.8 Stroke+285.6
Maximum outside dimension of body cross-section (mm) W40+H101.9 W58+H123 W70+H147.5
Cable length (m) Standard:1 / Option:3,5,10
Speed vs. payload graph Speed vs. payload graph Speed vs. payload graph Speed vs. payload graph
*1. Positioning repeatability in one direction.
*2. The speed may vary depending on the payload. Check the speed vs. payload graph (reference).
