Features

With a variety of arm and performance variations the necessary requirements are easily supported.

Utilizes an electric actuator composed of 2 to 6 slide axis orthogonal to each other.

With more than 10 models in various configurations cartesian supports a wide variety of applications.

Need something else? Specify special orders for models with stroke and payloads beyond the standard model offering.

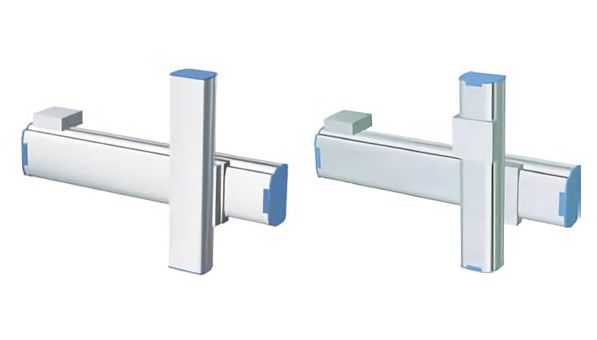

Introduces the Cartesian robots XZ Type.

Type with combination of X-axis for horizontal movement and Z-axis for vertical movement.

AXES： 2

Moving Range

Specifications

For external dimensions, refer to the PDF.

2-Axis Clamped base / Moving table type

Model Stroke(mm) Maximum payload(kg) Maximum speed(mm/sec)
Xaxis Yaxis Xaxis Yaxis
1050 350 10 1200 600
850 350 10 1200 600
1050 350 8 1200 1200
1050 150 ZS12 : 3
ZS6 : 5		 1200 ZS12 :1000
ZS6 : 500
3050 350 10 1875 600
3050 350 8 1875 1200
1050 350 15 1200 600
1050 350 14 1200 600

2-Axis Clamped table / Moving base type

Model Stroke(mm) Maximum payload(kg) Maximum speed(mm/sec)
Xaxis Zaxis Xaxis Zaxis
1050 350 14 1200 600
1250 550 20 1200 600
1250 550 30 1200 300
