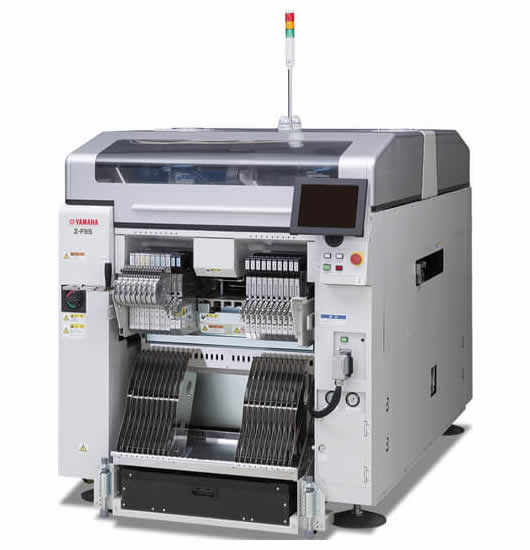

Sigma Σ-F8S
150,000 cph
(4 Beam)
33 x 33mm x 12.7mm
Direct Drive
Rotary Heads


The “1-head solution” direct drive rotary head produces high accuracy at high speeds.

Fastest speed in its class! Produces 150,000 CPH with 4 beams & 4 heads.

Significantly reduced maintenance down time with exchangeable nozzle stockers and linear drive motors.

The super loading feeder totally innovates component supply eliminating down time for feeder replenishment.


Model Sigma Σ-F8S
Applicable PCB Single lane:
L330 x W250mm to L50 x W50mm
(Option : L381 x W510mm to L50 x W50mm)
Dual lane:
L330 x W250mm to L50 x W50mm
Head/Applicable components High-speed head:
0201 CHIP to 4.3 x 3.4mm, Height 2.0mm or less
High-speed multi-purpose head:
03015 CHIP to 33mm square, Height 12.7mm or less
Mounting capability High-speed head x 4 specs:
150,000CPH (Dual lane)
136,000CPH (Single lane)
Mounting accuracy
(Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
High-speed Head:
0201/03015: ± 25μm (3σ) (140,000CPH)
0402/0603: ± 36μm ( 3σ) (150,000CPH)
Number of component types Max.80 types (conversion for 8 mm tape feeder)
Power supply 3-phase AC 200 V ± 10% 50/60Hz
Air supply source 0.45 to 0.69MPa (4.6 to 7 kgf/cm2)
External dimension L1,280 x W2,240 x H1,450mm (excluding projections)
Weight Approx. 1,940kg
