Slider Table Type - STH Stepping Motor | Single Axis Robot

Slider Table Type - STH
Compact
& Rigid
Integrated
Guide
High
Accuracy
Magnetic
Position Detection

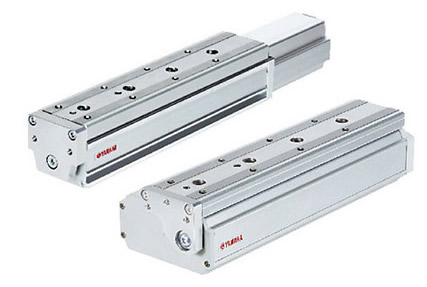

Slider table type (STH)
Universality, energy-saving and low impact achieved with multi-position positioning unique to motorized devices

Compact and rigid. Both straight specifications and space-saving specifications are available.

Features

TRANSERVO series

01 New control method combines the best features of servo and stepping motors!

Stepping motors provide great features such as low cost , yet they have a drastic drop in torque at high speeds and heavy current consumption when stopped. The TRANSERVO by YAMAHA eliminates all these problems by adopting an innovative vector control method. In effect, the TRANSERVO delivers the same functions of a servo motor while using a lower cost stepping motor.

Energy saver!

Control is basically the same as a servomotor so power consumption is kept to a minimum, which saves energy and helps cut down on CO 2 emissions.

Perfect stop!

Also perfect stop can be achieved as the same as with ordinary stepping motors so choose this setting if needed.

transervo

02 Environmentally rugged resolver provides closed loop control

The resolver used for detecting the motor position is the same reliable resolver as used in our high-level robots. Resolver offer stable position detection even in harsh environments containing dust or oil, etc. Addtionally the resolution of the resolver is 20480 pulses per revolution.

rugged resolver

The resolver is a magnetic position detector. Its structure is simple with no electronic component and no optical elements. One great feature compared to ordinary optical encoders is that there are very few points where a failure might occur. Vast quantities of resolvers are used in fields like aviation and the automobile industry where reliability is essential and also because they are highly tough in harsh environments with a low failure rate.


Slider table type


01Use of a circulation type linear guide achieves the high rigidity and high accuracy.

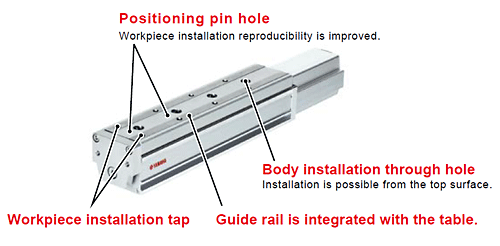

  • Guide rail is integrated with the table.
  • Table deflection amount is small.
  • Use of a circulation type linear guide achieves the high rigidity and high accuracy.
  • STH06 provides an allowable overhang exceeding thatof FLIP-X series T9.
  • Space-saving model with the motor built-into the body is also added to the product lineup.
  • Suitable for precision assembly.
Slider table Type

Specifications

Type STH04-S STH04-R/L STH06-S STH06-R/L
Catalog (Dimensions)
Model Straight Side mounted motor
(Right/left)
Straight Side mounted motor
(Right/left)
Motor 28□Step motor 28□Step motor 42□Step motor 42□Step motor
Resolution 4096 4096 20480 20480
Repeated positioning accuracy (mm) *2 +/-0.05 +/-0.05 +/-0.05 +/-0.05
Drive method Slide screw Slide screw + belt Slide screw Slide screw + belt
Lead (mm) 5 10 5 10 8 16 8 16
Maximum speed (mm/sec)*3 200 400 200 400 150 400 150 400
Maximum payload
(kg)
Horizontal
installation
6 4 6 4 9 6 9 6
Vertical
installation
2 1 2 1 4 2 4 2
Max. pressing force (N) 55 30 55 30 180 100 180 100
Stroke (mm) 50  100 50*1  100 50 100 150 50 100 150
Static loading moment
(N・m)
Stroke 50 100 50 100 50 100 150 50 100 150
MY 26 43 26 43 77 112 155 77 112 155
MP 26 43 26 43 77 112 155 77 112 155
MR 48 48 146 177 152 146 177 152
Allowable overhang
Maximum outside dimension of body cross-section (mm) W45×H46 W74.5×H51 W61×H65 W108×H70
Cable length (m) Standard:1 / Option:3,5,10
Speed vs. payload graph Horizontal
installation
Speed vs. payload graph Speed vs. payload graph
Vertical
installation
Speed vs. payload graph Speed vs. payload graph
*1. For the space saving models (R and L), the specifications with brake are applicable to only 100 strokes.
*2. Positioning repeatability in one direction.
*3. The speed may vary depending on the payload. Check the speed vs. payload graph (reference).
