Pole Type Industrial Robots | Cartesian Robots

Pole Type
Vertical
Y-Axis
Up to
1050mm
Stroke
Reliable
resolver
Lightweight
&
Compact
Video
Video
Data Sheets
Request Brochure

Features

With a variety of arm and performance variations the necessary requirements are easily supported.

Utilizes an electric actuator composed of 2 to 6 slide axis orthogonal to each other.

With more than 10 models in various configurations cartesian supports a wide variety of applications.

Need something else? Specify special orders for models with stroke and payloads beyond the standard model offering.

Introduces the Cartesian robots pole type.

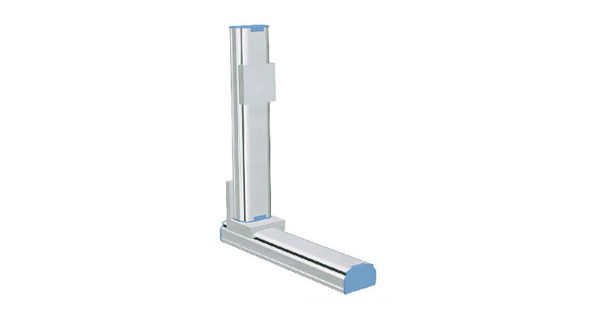

The type with vertically moving Y-axis carriage.

AXES： 2 / 3

Moving Range

Specifications

For external dimensions, refer to the PDF.

2-Axis

Model Stroke(mm) Maximum payload(kg) Maximum speed(mm/sec)
Xaxis Yaxis Xaxis Yaxis
850 550 8 1200 600
1250 650 20 1200 600
950 650 20 1200 600
1250 1050 30 1200 1200
850 850 30 1200 600

3-Axis Z axis clamped table ・ moving base type

Model Stroke(mm) Maximum payload(kg) Maximum speed(mm/sec)
Xaxis Yaxis Zaxis Xaxis Yaxis Zaxis
1250 650 350 10 1200 600 1200
1250 950 650 15 1200 600 1200
850 850 650 15 1200 600 1200

Pole Type | Industrial Robots | Cartesian Robots

Cartesian Robot
