3 Axis YP-X Series Industrial Robots | Pick and Place Robot;
Servo
Controlled
No
Mechanical Adj.
Small
part Applications
Accurate
Repeatability
Features
High Precision make these robots perfect for high-speed pick & place of small components.
Servo control makes for easy positioning with no mechanical adjustments.
Space saving design reduces the possibility of interference with its surroundings.
A fully assorted line-up of compact, general use versions are available.

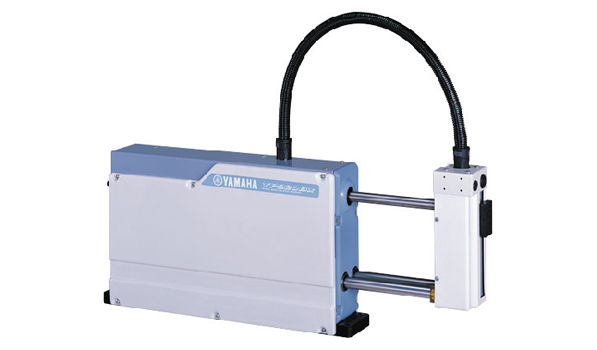

Pick & place robots, YP-X Series (3 axes), pursuing easy operation using servo control of all axes.
YP-X Series (3 axes)
As the overall width is narrow and the interference with surroundings is small by the moving arm structure, this ensures the space saving of the production line.
Specifications
Clicking a desired model name allows you to see its detailed catalog.
| Axes | Model | Structure | Maximum payload (kg) |
Cycle time (sec) |
|
|---|---|---|---|---|---|
| 3 axes | X axis | Belt | 1 | 0.62 | |
| Z axis | Belt | ||||
| R axis | Rotation axis | ||||
| X axis | Ball screw | 1 | 0.67 | ||
| Z axis | Belt | ||||
| R axis | Rotation axis | ||||
| X axis | Ball screw | 3 | 0.57 | ||
| Y axis | Ball screw | ||||
| Z axis | Belt | ||||
