Motor-driven actuators YLE series
The product line up meeting a variety of demands are here for you to choose from.

Six Available Types

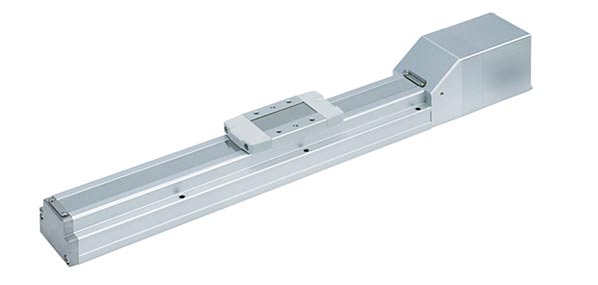

Slider type：

YLEF

Rod type：

YLEY

Slide table type：

YLES

Miniature type：

YLEP

Rotary type：

YLER

Motor-driven gripper type：

YLEH

Features

01 The extensive lineup of products enables a wide range of combinations.

The functionality equivalent to that of a servomotor is now available at low costs.

Stepping motors provide great features such as low cost , yet they have a drastic drop in torque at high speeds and heavy current consumption when stopped. The TRANSERVO by YAMAHA eliminates all these problems by adopting an innovative vector control method. In effect, the TRANSERVO delivers the same functions of a servo motor while using a lower cost stepping motor.

Slider type YLEF 11 types

YLEF
YLEFS
Ball screw drive
YLEFB
YLEFB
Belt drive

Rotary table type YLER 6 types

YLER
YLER

Rod type YLEY 16 types

YLEY
YLEY
Rod type
YLEY
YLEYG
Rod type with a guide

Miniature type YLEP4 types

YLEP
YLEPY
Miniature rod
YLEP
YLEPS
Miniature slide table

Slide table type YLES12 types

YLES
YLES
Low profile type
YLES
YLESH
High rigidity type

Electrical gripper type YLEH20 types

YLEH
YLEHZ
Two claws
YLEH
YLEHZJ
Two claws dust cover
YLEH
YLEHF
Two claws long stroke
YLEH
YLEHS
3 claws

Specifications

Type Slide Type [Ball Screw Drive] Slide Type [Belt Drive]
Model YLEFS16 YLEFS25 YLEFS32 YLEFS40 YLEFB16 YLEFB25 YLEFB32
Stroke (mm) 50-500 50-800 50-1000 150-1200 300, 500, 600, 700, 800,900, 1000 300, 500, 600, 700, 800, 900,1000, 1200, 1500, 1800, 2000 300, 500, 600, 700, 800, 900,1000, 1200, 1500, 1800, 2000
Type Rod Type Guide Fitted Rod Type
Model YLEY16 YLEY25 YLEY32 YLEY40 YLEYG16 YLEYG25 YLEYG32 YLEYG40
Stroke (mm) 30, 50, 100, 150, 200, 250, 300 30, 50, 100, 150, 200, 250, 300, 350, 400 30, 50, 100, 150, 200, 250, 300, 350, 400, 450, 500 30, 50, 100, 150, 200, 250, 300, 350, 400, 450, 500 30, 50, 100, 150, 200 30, 50, 100, 150, 200, 250, 300 30, 50, 100, 150, 200, 250, 300 30, 50, 100, 150, 200, 250, 300
Type Slide Table Type [Thin Type] Slide Table Type [High Rigidity Type]
Model YLES8 YLES16 YLES25 YLESH8 YLESH16 YLESH25
Stroke (mm) 30, 50, 75 30, 50, 75, 100 30, 50, 75, 100, 125, 150 50, 75 50, 100 50, 100, 150
Type Miniature Load Type Miniature Slide Table Type
Model YLEPY6 YLEPY10 YLEPS6 YLEPS10
Stroke (mm) 20, 50, 75 25, 50
Type Rotary Table Type [Standard Spec. (Finite Rotary)] Rotary Table Type [Continuous Rotary Spec.]
Model YLER10 YLER30 YLER50 YLER10 YLER30 YLER50
Movement Angle（°） 310 Outer Stopper: 180/90 320 Outer Stopper: 180/90 360
Type Electric Gripper 2Clipped Type Electric Gripper 2 Clipped Type[With Dust Cover]
Model YLEHZ10 YLEHZ16 YLEHZ20 YLEHZ25 YLEHZ32 YLEHZ40 YLEHZJ10 YLEHZJ16 YLEHZJ20 YLEHZJ25
Open/Close Stroke (mm) 4 6 10 14 22 30 4 6 10 14
Type Electric Gripper 2 Clipped Type [Long Stroke] Electric Gripper 3 Clipped Type
Model YLEHF10 YLEHF20 YLEHF32 YLEHF40 YLEHS10 YLEHS20 YLEHS32 YLEHS40
Open/Close Stroke (mm) Basics 16 24 32 40 4 6 8 12
Long Stroke 32 48 64 80
