W type (Screw type)
Control
30 to 100%
(1% steps)
(1% steps)
Speed
20 to 100%
(1% steps)
(1% steps)
Acceleration
1 to 100%
(1% steps)
(1% steps)
Multipoint
10,000 max

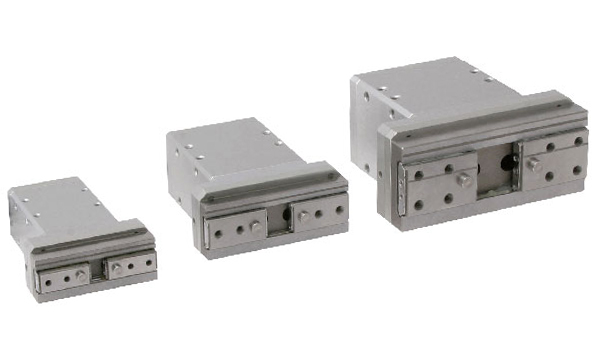

Electric gripper W type (double cam type)
YAMAHA's electric gripper W type (double cam type) is introduced that achieves the highly precise gripping control unique to the electric drive.
YAMAHA's electric gripper W type (double cam type) is introduced that achieves the highly precise gripping control unique to the electric drive.
- Hoding power control:30 to 100% (1% steps)
- Speed control:20 to 100% (1% steps)
- Acceleration control:1 to 100% (1% steps)
- Multipoint position control:10,000 max.
- Workpiece size judgment:0.01 mm units (by ZON signal)
Specifications
Clicking a desired model name allows you to see its detailed catalog.
| Type | Model | Holding power (N) |
Open/close stroke (mm) |
Maximum speed (mm/sec) |
Repetitive positioning accuracy (mm) |
Weight (g) |
|---|---|---|---|---|---|---|
| Double cam | 50 | 5 | 60 | +/-0.03 | 200 | |
| 150 | 10 | 60 | +/-0.03 | 350 | ||
| 250 | 19.3 | 45 | +/-0.03 | 800 |
Hoding power control: 30 to 100% (1% steps)
Speed control: 20 to 100% (1% steps)
Acceleration control: 1 to 100% (1% steps)
Multipoint position control: 10,000 max.
Workpiece size judgment: 0.01 mm units (by ZON signal)
