Single Axis Robot SSC Industrial Robots | Clean Room
Highly
Sealed Structure
Use in
Electronics,
medical, food
medical, food
CLASS10
(FED-STD-209D)
TRANSERVO
series
Features
Suitable for clean room electronics, food and medical related work.
Dust emission prevention through highly sealed structures.
High suction efficiency achieves both cleanliness and high performance.
Clean room labor savings through automated production systems.

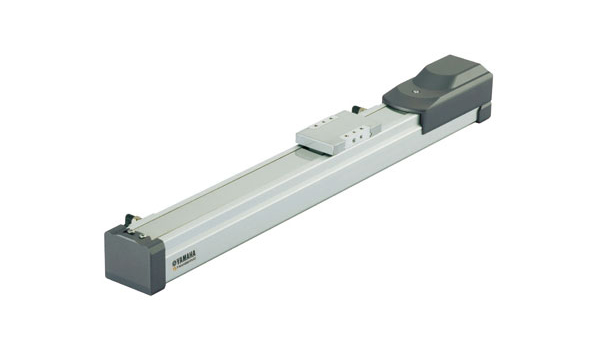

SSC type (TRANSERVO series)
Clean single-axis robots A clean room applicable model of the less expensive compact single-axis robot TRANSERVO series.
Suction air joint is provided as standard accessory and low dust emission grease is used.
As a stainless sheet with excellent durability is attached to the slide table surface, this achieves high cleanliness degree. This robot can also be used vertically. Degree of cleanliness : CLASS 10 *Per 1cf (0.1µ base),when suction blower is used.
Clean single-axis robots A clean room applicable model of the less expensive compact single-axis robot TRANSERVO series.
Suction air joint is provided as standard accessory and low dust emission grease is used.
As a stainless sheet with excellent durability is attached to the slide table surface, this achieves high cleanliness degree. This robot can also be used vertically. Degree of cleanliness : CLASS 10 *Per 1cf (0.1µ base),when suction blower is used.
Stroke：50 to 800mm
Intake Air：15 to 80Nℓ/min
Degree of cleanliness：CLASS10
Maximum payload：12kg(Horizontal)
Specifications
Clicking a desired model name allows you to see its detailed catalog.
| Model | Size(mm) | Lead(mm) | Payload(kg) | maximum speed(mm/sec) | Stroke(mm) | |
|---|---|---|---|---|---|---|
| Horizontal | Vertical | |||||
| W49×H59 | 12 | 2 | 1 | 600 | 50 to 400 | |
| 6 | 4 | 2 | 300 | |||
| 2 | 6 | 4 | 100 | |||
| W55×H56 | 20 | 4 | - | 1000 | 50 to 800 | |
| 12 | 6 | 1 | 600 | |||
| 6 | 10 | 2 | 300 | |||
| W55×H56 | 20 | 6 | - | 1000 | 50 to 800 | |
| 12 | 8 | 2 | 600(Horizontal)・ 500(Vertical) |
|||
| 6 | 12 | 4 | 300(Horizontal)・ 250(Vertical) |
|||
Note. Size is the approximate cross sectional size.
