YC8 Odd Form Placement

Line Length
100 x 100mm
45mm tall parts
Interface with
any 3rd party
Up to 1kg
Component Weight


Maximum components size: W 100 x L 100 mm, heights: 45 mm

Capable heavy components up to 1 kg; supports press fitting of components

Compact machine width of 880 mm allows for more efficient use of factory floor space

Utilizes the ATS15 automatic tray supply unit capable of handling up to 15 trays

Compatible with the “SS feeder” and “ZS feeder”

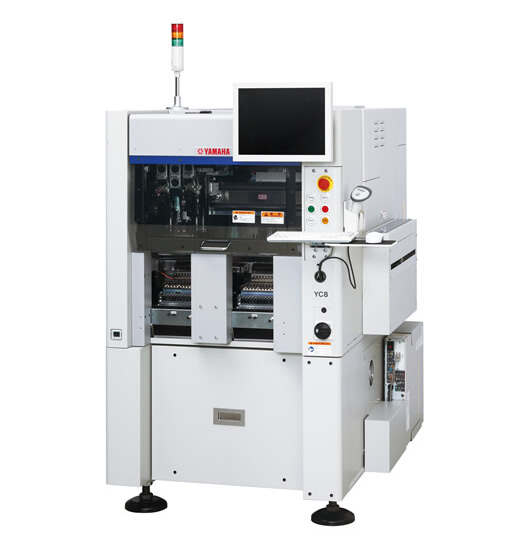

Model YC8
Applicable PCB L50 x W50mm to L330 x W360mm (note 1)
Mounting accuracy Absolute accuracy (μ + 3σ): +/- 0.05mm/QFP
Repeatability (3σ): +/- 0.03mm/QFP
Mounting Capability 2.5 sec/component (cycle time from a pickup to mounting with recognition)
Applicable components 4 x 4mm to 100 x 100mm (note 2)
(Some components larger than 45 x 45mm ane conditional)
Maximum components heights 45mm
Maximum payload 1kg
Component supply configuration: number of component types Tape reel: max. 28 types (8mm width)
Tray: max. 15 trays
Power supply 3-phase AC 200/208/220/240/380/400/416 V +/- 10% 50/60 Hz
Air supply source 0.45 to 0.69MPa (4.6 to 7 kgf/cm2)
External dimension
(excluding projections)
L880 x W1,440 x H1,445mm (main unit only)
L880 x W1,755 x H1,500mm (when ATS15 is installed)
Weight Approx. 1,000 kg (main unit only)
ATS15: approx. 120kg
1) Please consult us separately for maximum board sizes.
2) Consult us separately regarding component sizes outside the specifications.
