Double Y Axis Type Industrial Robots | Cartesian Robots
High
Repeatability
High
Accuracy
Reliable
resolver
Lightweight
&
&
Compact
Features
With a variety of arm and performance variations the necessary requirements are easily supported.
Utilizes an electric actuator composed of 2 to 6 slide axis orthogonal to each other.
With more than 10 models in various configurations cartesian supports a wide variety of applications.
Need something else? Specify special orders for models with stroke and payloads beyond the standard model offering.
Introduces the Cartesian robots Double Y Axes Type.

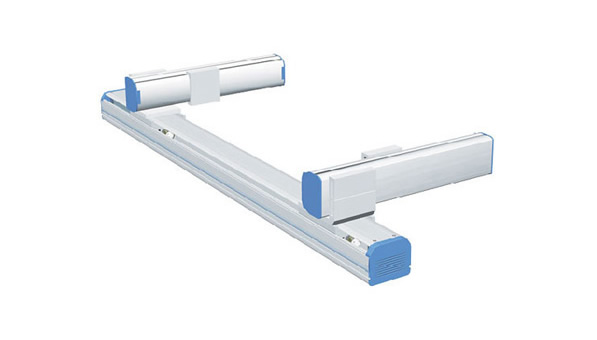

Double Y-axis Type compactly combines two Cartesian robots.
AXES： 4 / 6
Specifications
For external dimensions, refer to the PDF.
4-Axis
| Model | stroke(mm) | Maximum payload(kg) | Maximum speed(mm/sec) | ||||
|---|---|---|---|---|---|---|---|
| Xaxis | Yaxis | Zaxis | Xaxis | Yaxis | Zaxis | ||
| 1750 | 650 | - | 25 | 1200 | 1200 | - | |
6-Axis Z axis clamped base ･ moving table type
| Model | stroke(mm) | Maximum payload(kg) | Maximum speed(mm/sec) | ||||
|---|---|---|---|---|---|---|---|
| Xaxis | Yaxis | Zaxis | Xaxis | Yaxis | Zaxis | ||
| 1750 | 650 | 350 | 8 | 1200 | 1200 | 1200 | |
6-Axis Z axis clamped table ･ moving base type
| Model | stroke(mm) | Maximum payload(kg) | Maximum speed(mm/sec) | ||||
|---|---|---|---|---|---|---|---|
| Xaxis | Yaxis | Zaxis | Xaxis | Yaxis | Zaxis | ||
| 1750 | 650 | 350 | 13 | 1200 | 1200 | 600 | |
