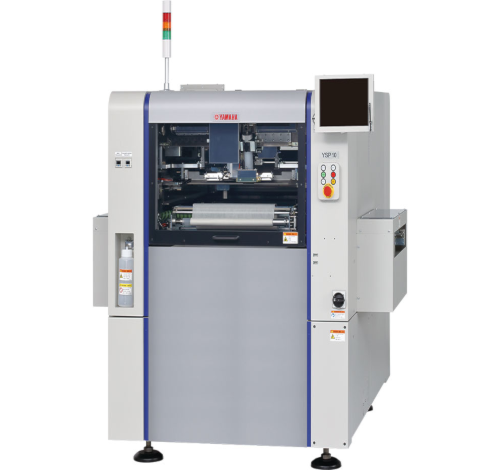

YSP10 Surface Mount Technology | PCB Printer | Cycle Time
10
sec complete
cycle time
cycle time
3-5
min No Touch
Changeover
Changeover
Automatic
Stencil, Solder
&
Tooling Exchange
&
Tooling Exchange
Fast
Parallel
Processing
Processing
Features
Cycle time on the world’s fastest level!
Supports fully-automatic stencil replacement
Delivers both high quality & super-accurate printing!
Supports extra-large boards & large-size stencils
Specifications
| Model | YSP10 |
| Applicable PCB | L510 x W510mm to L50 x W50mm (option : L610 x W510mm) |
| Printing head | 3S head (3S : Swing Single Squeegee) (option : Double squeegee head) |
| Printing accuracy | Positioning repeatability (6σ) : +/- 0.01mm |
| Cycle time | 10sec (Standard printing : under optimum condition, including board transfer time and printing time) 12sec (Including cleaning : under optimum condition, including board transfer time and printing time) |
| Applicable stencil sizes |
L750 x W750mm L736 x W736mm (29″) L750 x W650mm L650 x W550mm L584 x W584mm (23″) |
| Power supply | Single-phase AC 200 to 230V +/-20V |
| Air supply source | 0.45MPa or more |
| External dimension (excluding projections) | L1,640 x W1,990 x H1,525mm (full range of options) |
| Weight | Approx. 1,700kg |
Specifications and appearance are subject to change without prior notice.
