YRM20 Surface Mount Technology | Premium High-efficiency Modular

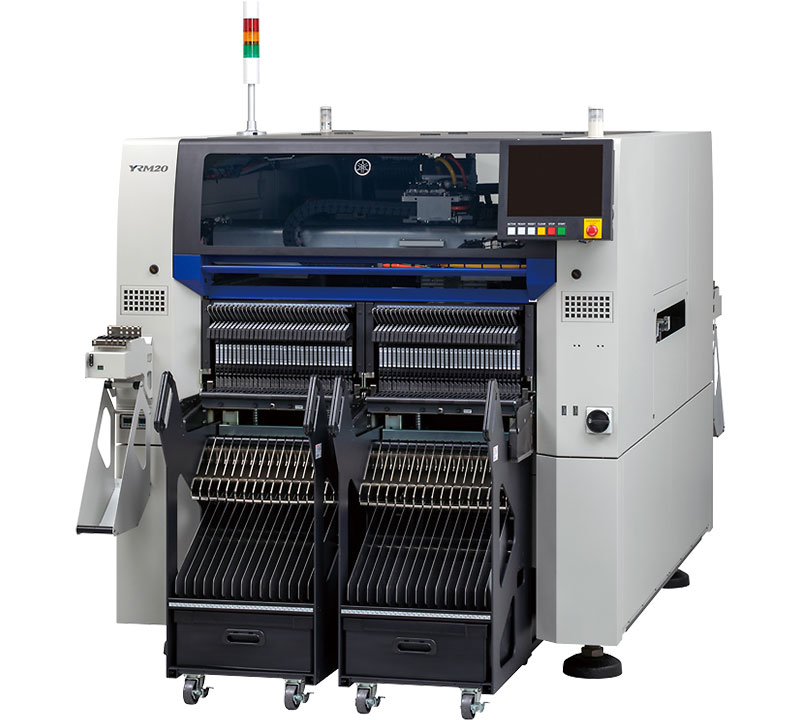

YRM20
115,000CPH
Throughput
0201 Metric
55x100mm x 30mm
parts
High-Accuracy
±0.025mm Cpk≧1.0
Overdrive
Σ technology
Video
Video
Data Sheets
Request Brochure
Press Release
Press Release

Features

Yamaha flagship technologies unite into the ultimate P&P solution!

Hi-Speed or Multi-Function, YRM offers the best of both worlds.

Well quipped out of the box solution makes YRM the easy choice

Feature rich functionality yields high-efficiency production and factory integration

Specifications

Model
YRM20
Super high-speed rotary RM head High-speed general-purpose
in-line HM head		 Odd-shaped components
in-line FM (flexible-multi) head
Nozzles (per 1 head unit) 18 10 5
Applicable components 0201mm to W12 x L12mm
Height 6.5mm or less		 0201mm to W55 x L100mm
Height 15mm or less		 03015mm to W55 x L100mm
Height 30mm or less
Mounting capability
(during high-production mode)		 115,000CPH
(under optimum conditions)		 98,000CPH
(under optimum conditions)		 35,000CPH
(under optimum conditions)
Mounting accuracy
(during high-precision mode)		 ±0.025mm Cpk≧1.0
(under optimum conditions)		 ±0.035mm Cpk≧1.0
(under optimum conditions)
Number of component types Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder)
Fixed plate : Max. 128 types (conversion for 8mm tape feeder)
Trays: 60 types (maximum when equipped with eATS30 x 2)
PCB dimensions Dual-stage specifications
1-PCB conveyance : L50 x W50mm to L810 x W510mm
2-PCB conveyance : L50 x W50mm to L380 x W510mm
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension
(excluding projections)		 L1,374 x W1,948 x H1,445mm
Weight Approx. 2,250kg (Main unit only)

Specifications and appearance are subject to change without prior notice.
