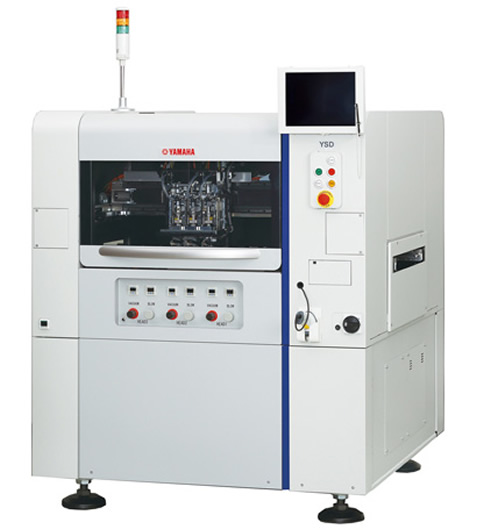

YSD Surface Mount Technology | High Density Dispenser

Dots / Hour
2 or 3
Dispense Head
Non Contact
Line or Dot
Long Board
Up to 1,200MM


High-speed, high-accuracy and stable dispensing for high-density mounting

Non-contact dispensing and line dispensing; support for wide-range applications

Support for Yamaha SMT Software and Production Line Network, delivers highly efficient production

Dispensing accuracy +/- 0.05 mm (µ + 3σ)


Model YSD
Applicable PCB L510 x W460mm ~ L50 x W50mm
* Please contact us for board size that exceeds the above.
Dispensing tact 0.07sec/shot (under optimum condition)
Power supply 3-phase AC 200/208/220/240/380/400/416 V +/- 10%
Air supply source 0.45MPa or more
External dimension L1,254 x W1,419 x H1,445mm (excluding projections)
Weight Approx. 1,250kg

YSD | Surface Mount Technology | High Density Dispenser

SMT Dispenser
